The HE-VA Accu-Disc is a double disc coulter with press wheel, enabling seed placement to be controlled precisely and consistently to your required depth.
The Accu-Disc coulter opens the soil and places the seed at a constant depth ensuring no seed is visible on the surface then the rear press wheel closes and re-consolidates ensuring good seed to soil contact.
FEATURES & BENEFITS
Parallelogram
Each coulter is mounted onto a parallelogram to maintain constant pressure and an even depth including on an uneven seedbed.
Double Disc
The large double discs ensure the coulters cope well with trash and large clods.
Press Wheels
Rear rubber press wheels improve consolidation and seed to soil contact for excellent germination.
CONTROL
Depth Adjustment
Overall depth is controlled by a turn-buckle with a built in depth gauge.
Coulter Pressure
Coulter pressure is provided by a spring and adjusted by a manually adjustable tensioner, allowing the coulter bar to be set to suit the conditions quickly and without the need of tools.
ACCU-DISC MODELS
The Accu-Disc Seeding tool bar is available in 3-6m working widths with 5-11 disc coulters. Accu-Disc comes as standard ready to bolt on to the HE-VA Subsoiler and HE-VA Combi-Disc (Accu-Disc not available on trailed Combi-Disc models).
Technical Information
| No. of Coulters | Working Width | Description | Weight |
| 5 | 3m | Mounted rigid | 260kg |
| 7 | 3.5m | Mounted rigid | 327kg |
| 7 | 4m | Mounted folding | 394kg |
| 9 | 5m | Mounted folding | 487kg |
| 7 | 4m | Trailed folding | 394kg |
| 9 | 5m | Trailed folding | 487kg |
| 11 | 6m | Trailed folding | 581kg |
As with the standard version, the Accu-Disc Twin Seeding tool bar is available in 3-6m working widths and offers twin disc coulters, doubling the quantity of coulters on the machine. Accu-Disc comes as standard ready to bolt on to the HE-VA Subsoiler and HE-VA Combi-Disc (Accu-Disc not available on trailed Combi-Disc models).
Technical Information
| No. of Coulters | Working Width | Description | Weight |
| 5 | 3m | Mounted rigid | 378kg |
| 7 | 3.5m | Mounted rigid | 493kg |
| 7 | 4m | Mounted folding | 559kg |
| 9 | 5m | Mounted folding | 700kg |
| 7 | 4m | Trailed folding | 559kg |
| 9 | 5m | Trailed folding | 700kg |
| 11 | 6m | Trailed folding | 841kg |

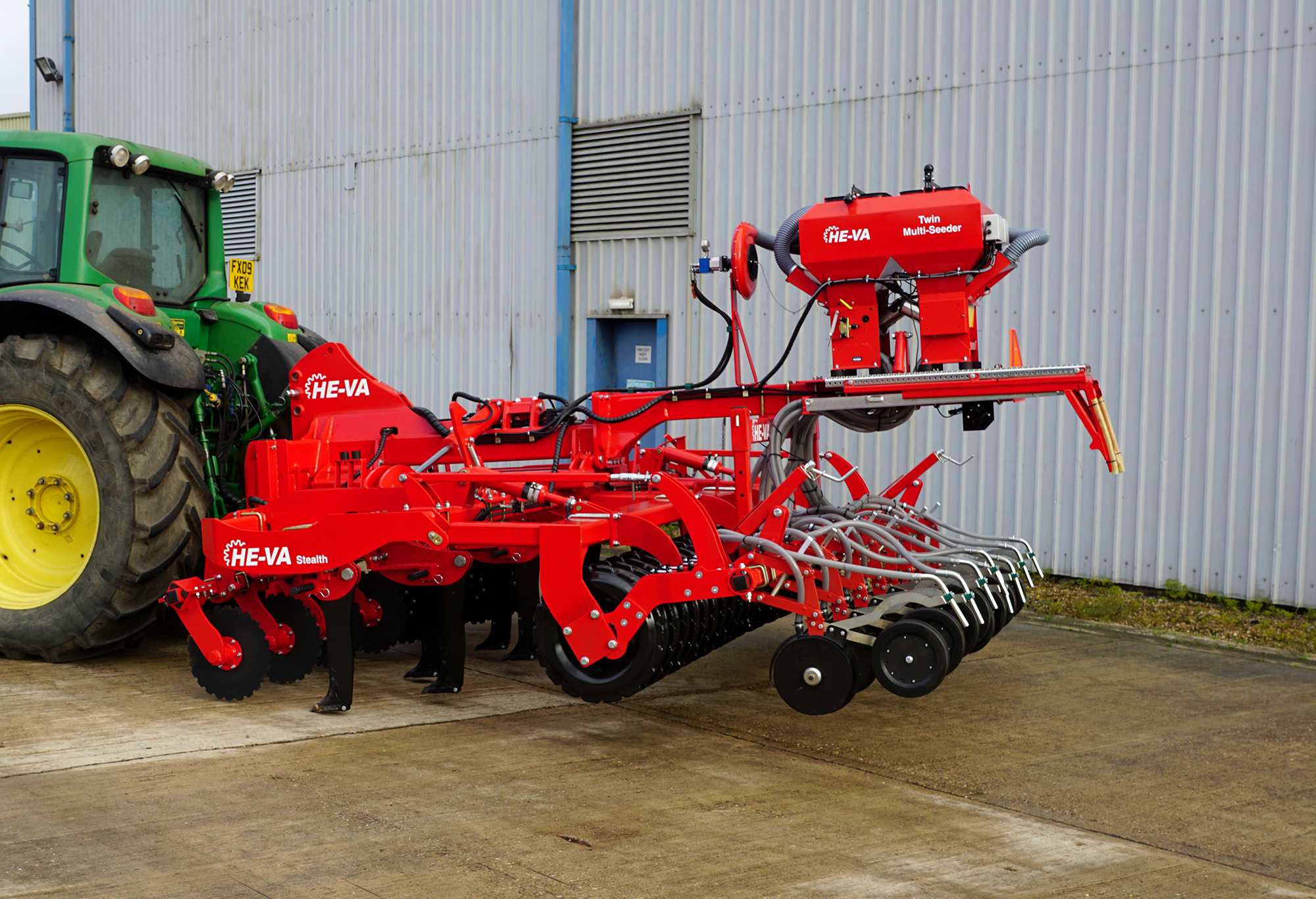

The Stealth Accu-Disc Seeding tool bar is also available in 3-6m working widths and has been designed specifically, to be mounted with the HE-VA Stealth low-disturbance Subsoiler.
Technical Information
| No. of Coulters | Working Width | Description |
Weight |
| 6 | 3m | Mounted rigid | 312kg |
| 7 | 3.5m | Mounted rigid | 327kg |
| 8 | 4m | Mounted folding | 416kg |
| 10 | 5m | Mounted folding | 520kg |
| 12 | 6m | Mounted folding | 624kg |
OPTIONS & ACCESSORIES
| Model | Description |
| 1064508-60 | Extra Disc with depth wheel, short clamp |
| 1064508-65 | Extra Disc with depth wheel, long clamp |
| 1064508-01 | Mechanical Seeder Drive Modification kit - when fitting Accu Disc to HE-VA Mounted Subsoiler with a New Seeder |
| 1064508-02 | Mechanical Seeder Drive modification kit - when fitting Accu Disc to HE-VA mounted Subsoiler with a Existing Seeder |
| 1064509-58 | Slug pellet applicator kit - per row |

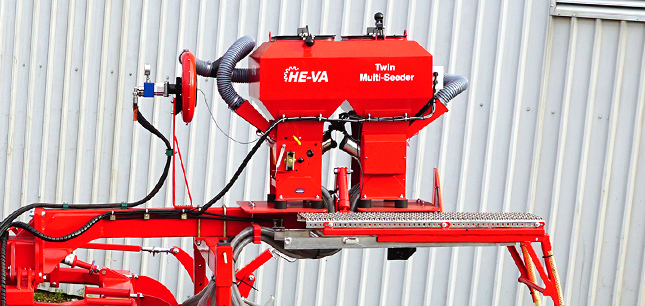

Click to find out more about the HE-VA Multi-Seeder options.
