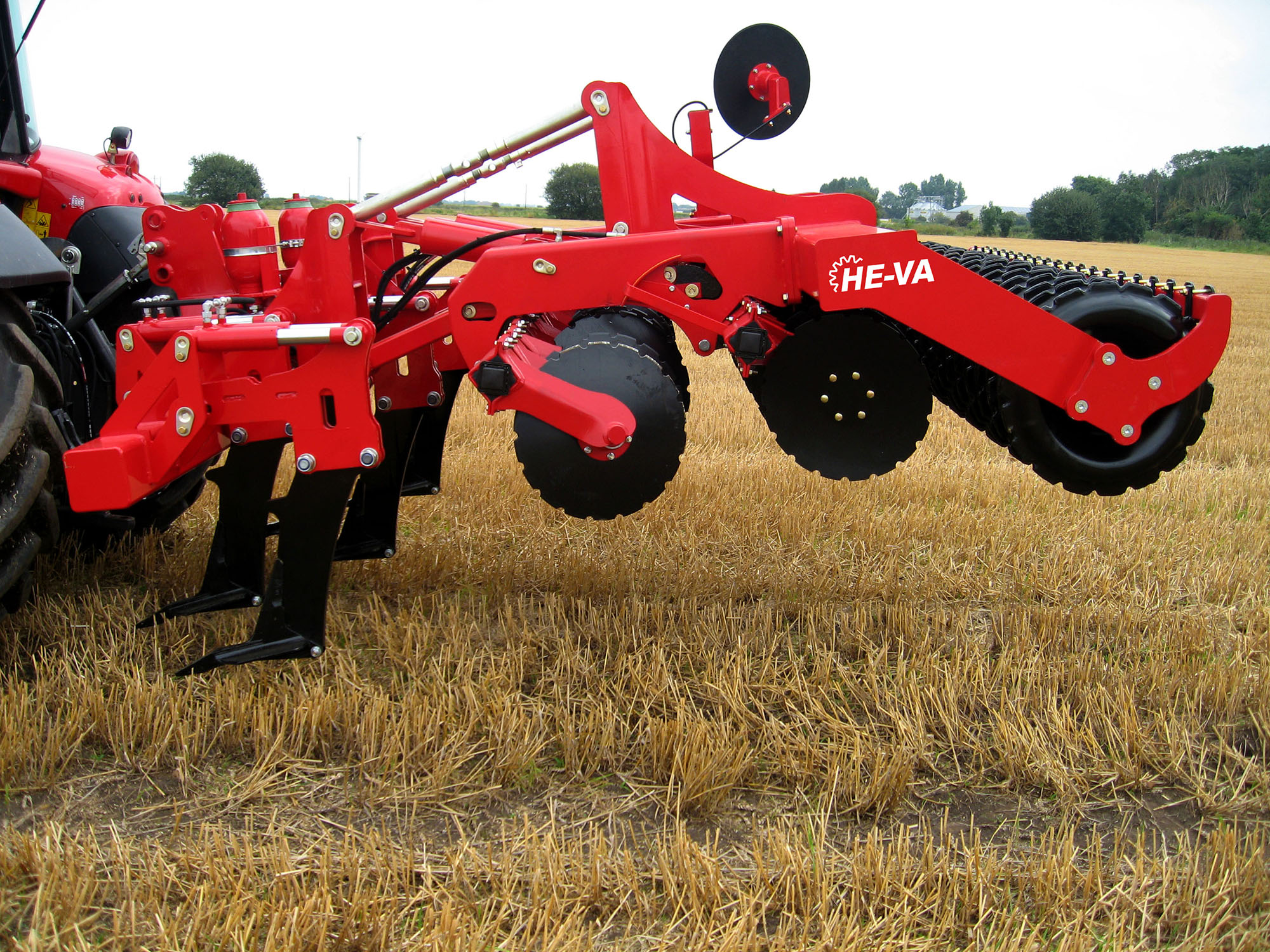

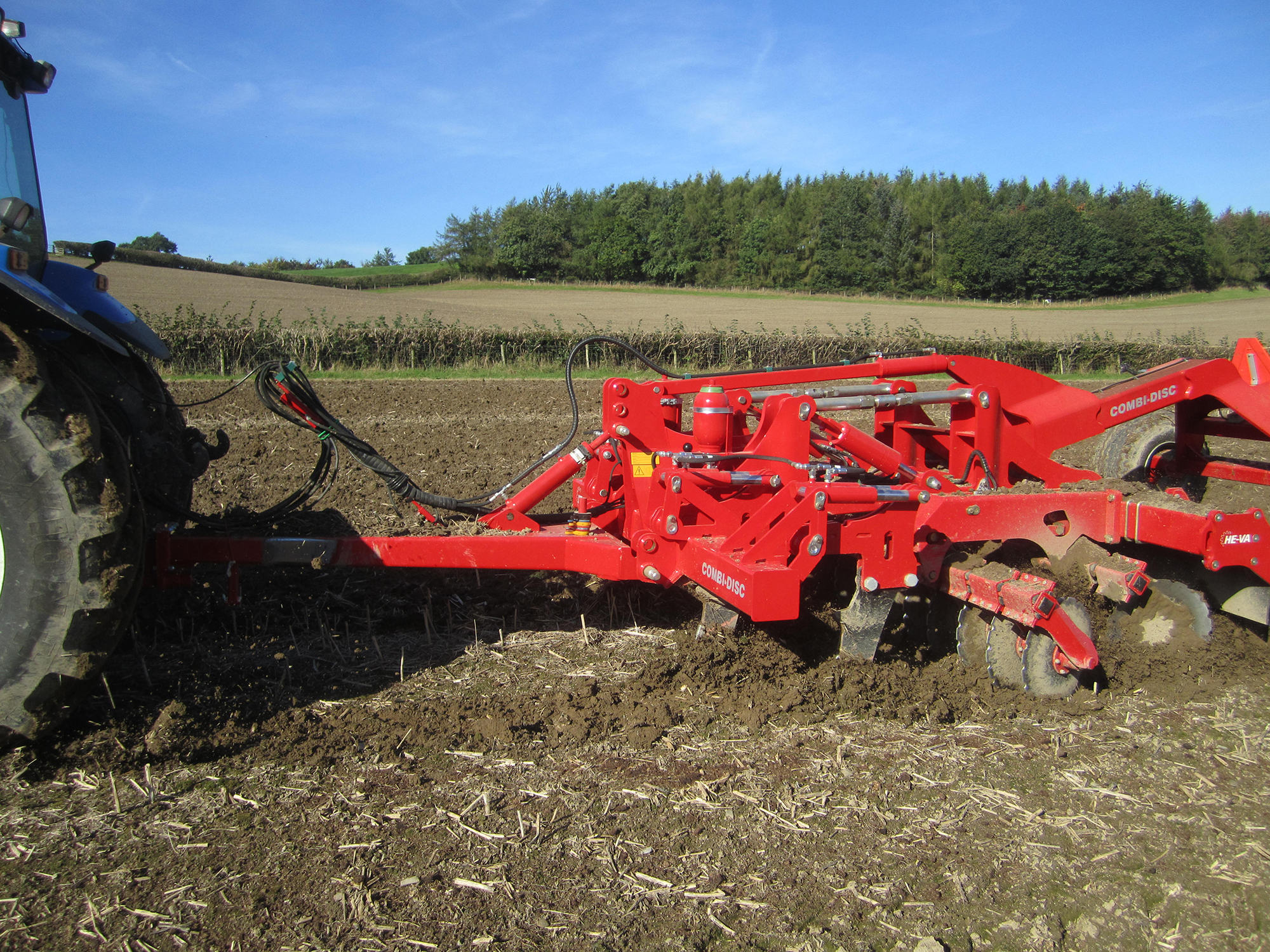

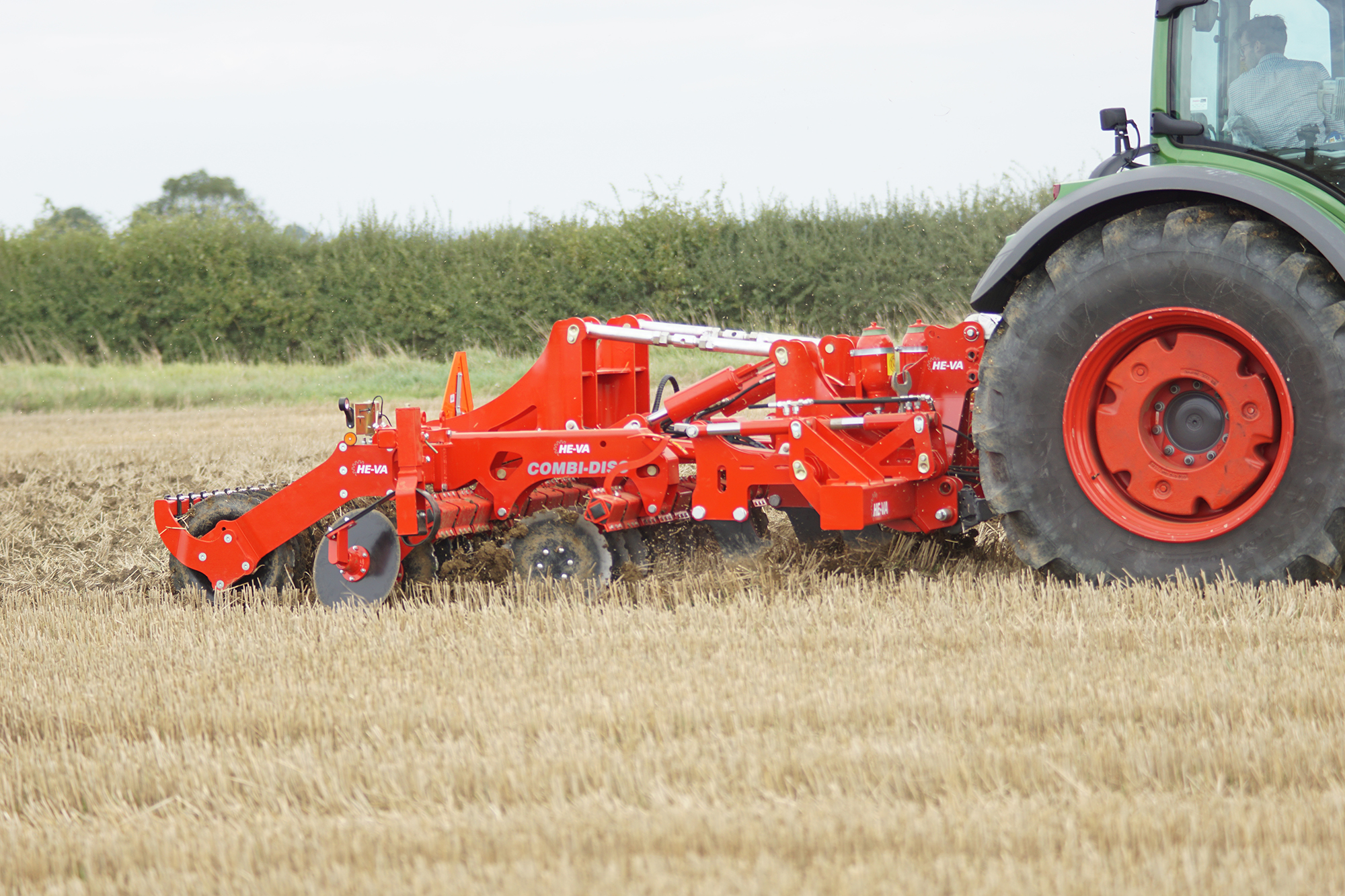

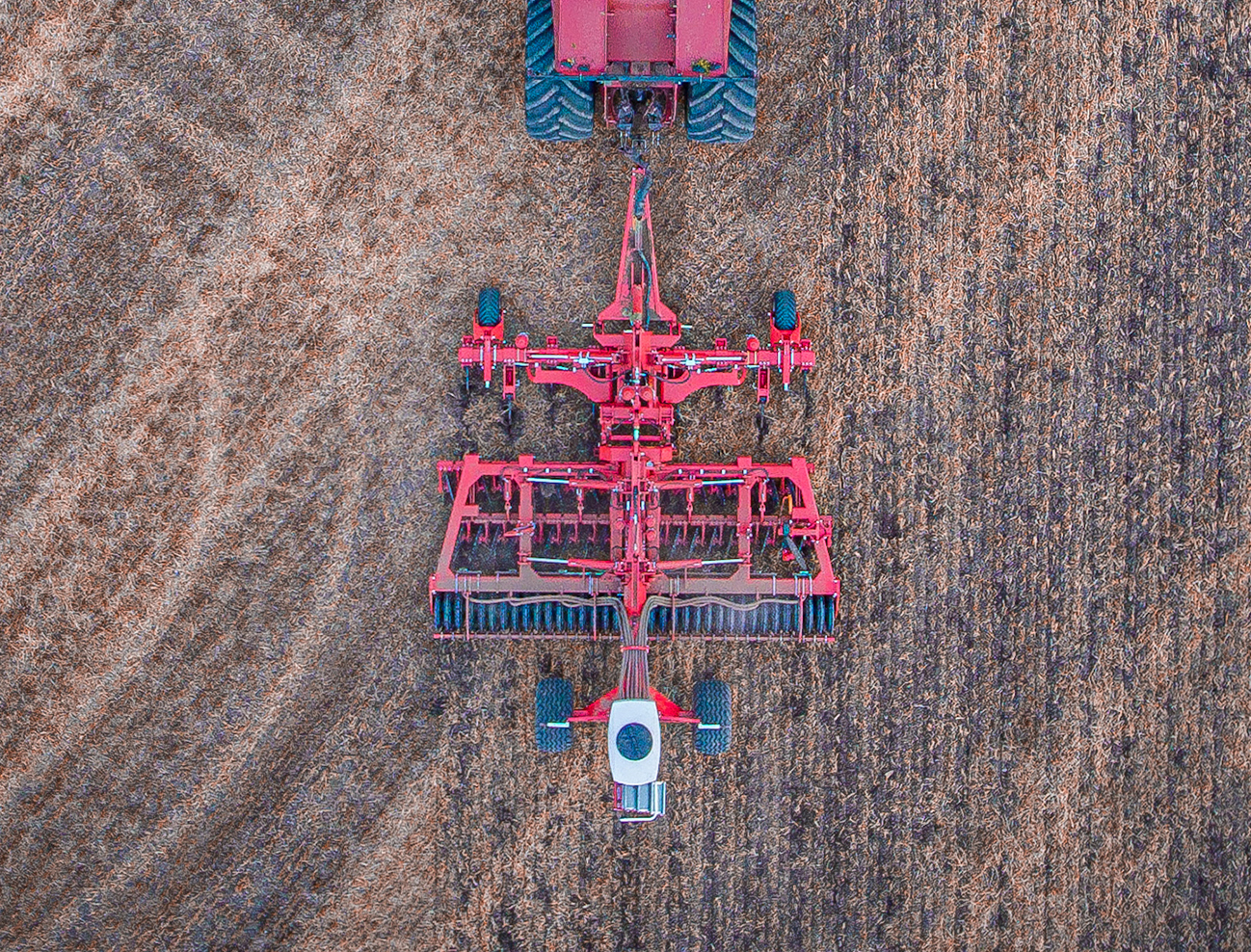

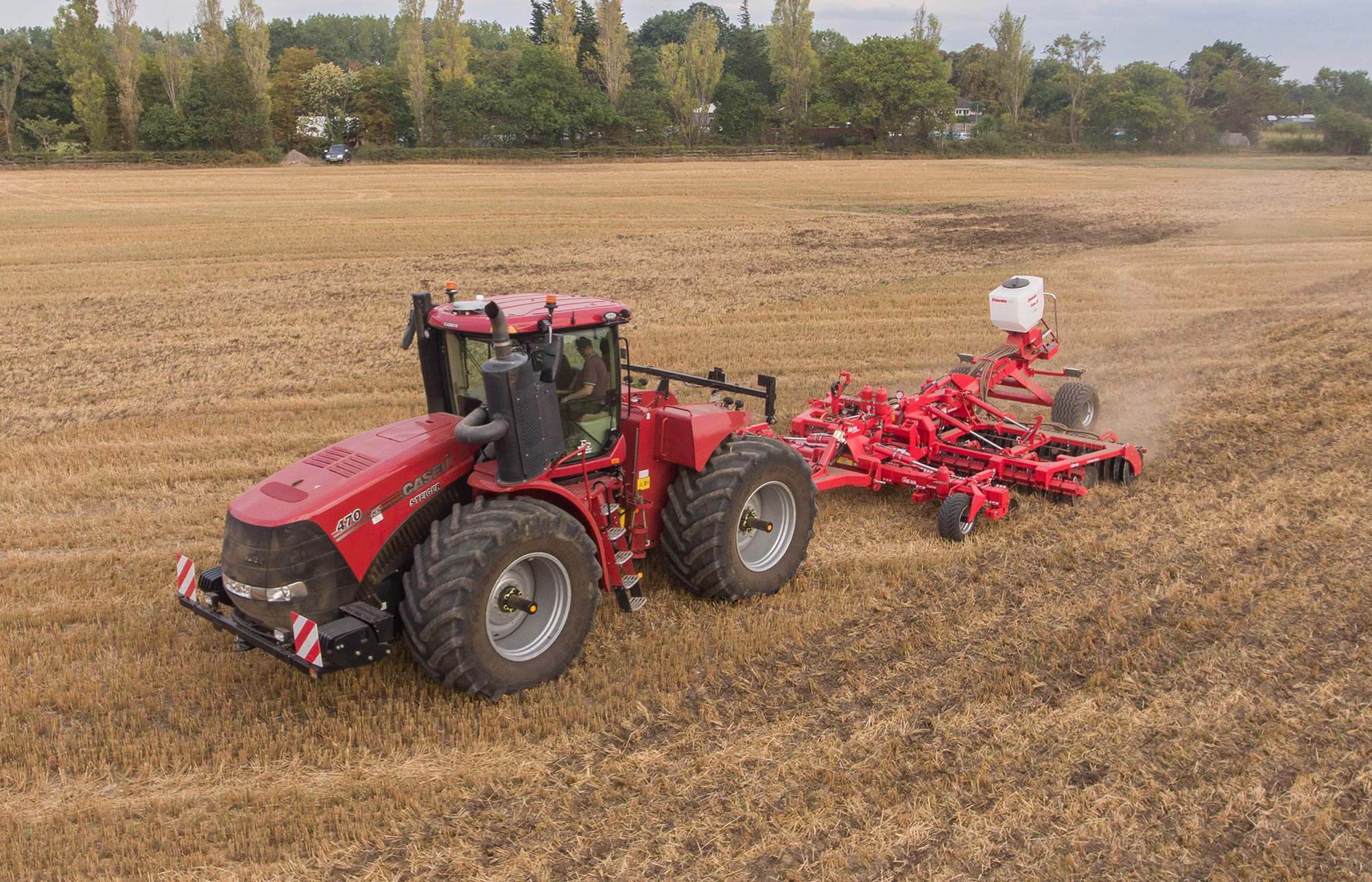

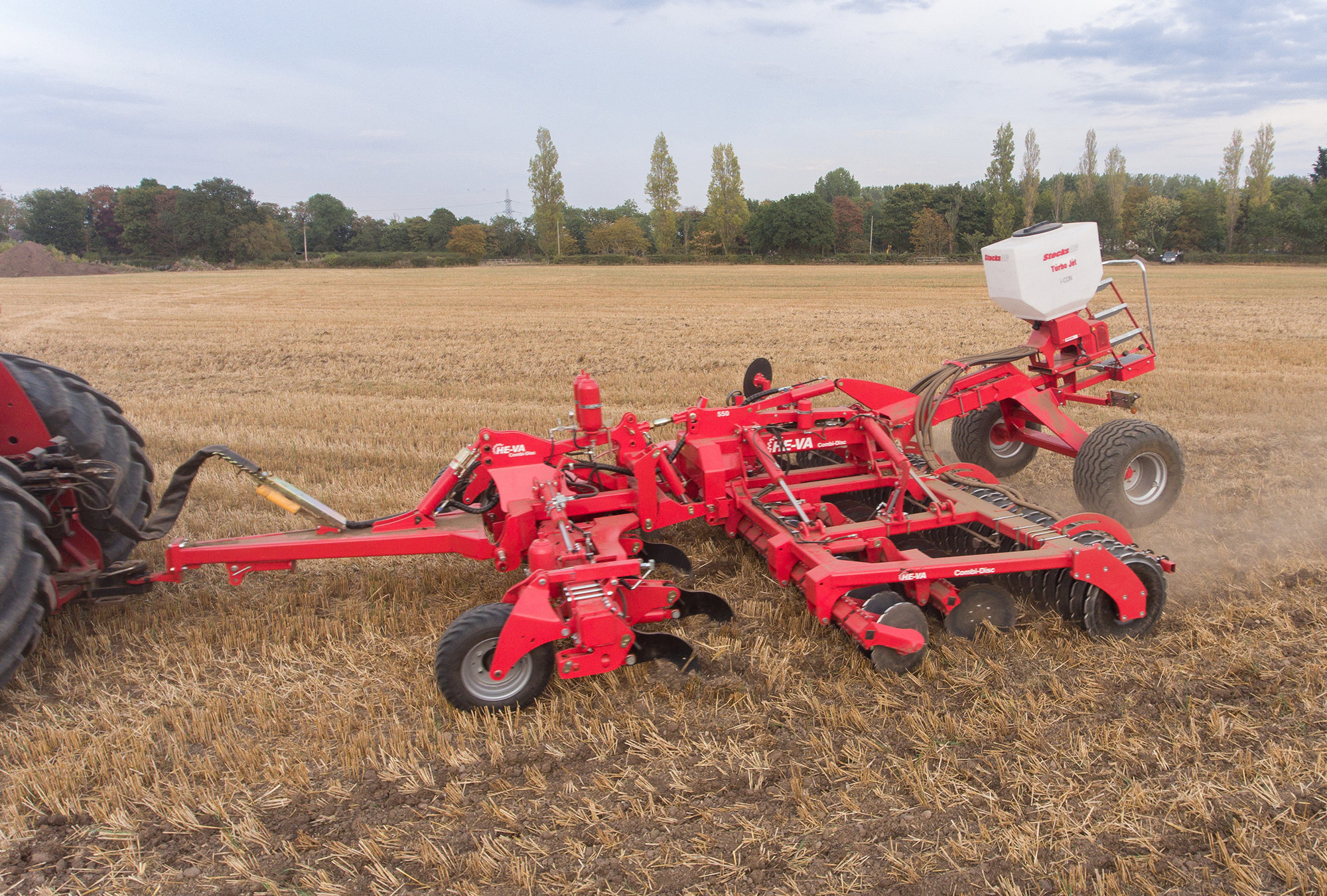

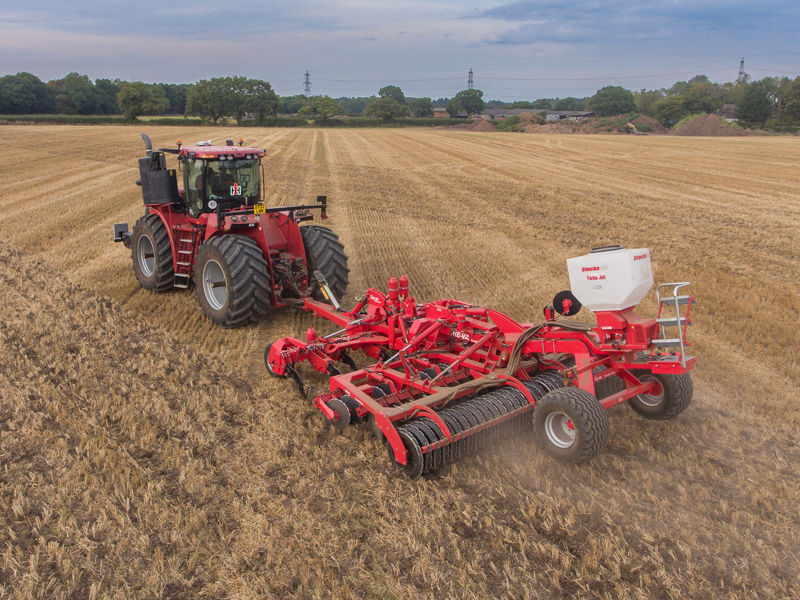

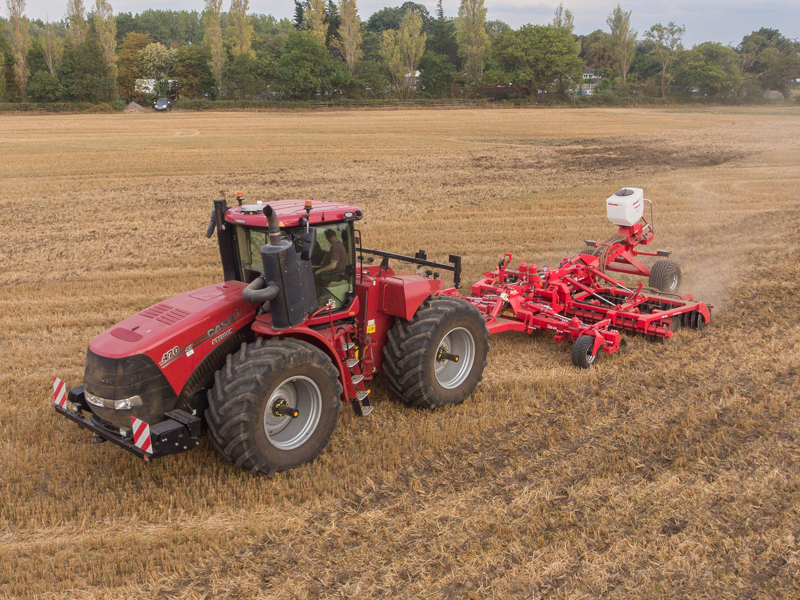

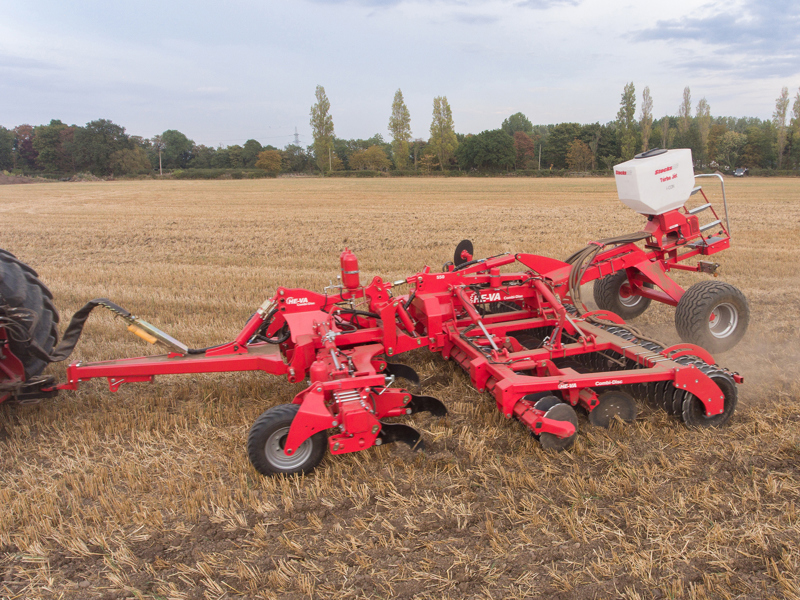

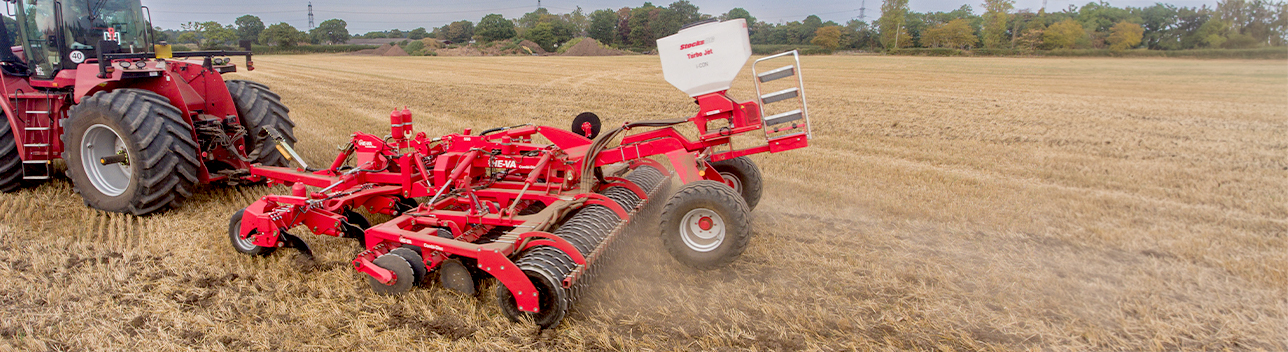

COMBI-DISC

Minimum Tillage/Cultivator

Investment item: Minimum Tillage/Cultivator

Eligible Item: Combi-Disc

Specification:

Multi-component one pass/reduced cultivation machine consisting of:

• a minimum of three different soil engaging parts
• two of the soil engaging parts to be separate rows of either fixed, tines, discs, loosening legs or spring tines
• third soil engaging part must be a rear packer, crumbler, roller, rings or shouldered rings
• minimum of 3m working width

The grant will be a maximum 40% contribution against actual invoiced costs up to the maximum referenced costs as stated within Annex A.

Full details

If you're interested in this machine, the first step is to apply for the eligible machine before the 16th April 2024. Secondly, once you have your application approved, and you’ve accepted the contract within 30 calendar days of the offer date and adhered to all the requirements, the next step is to purchase the item/machine.

If your application for the above machine is successful, then speak to your local HE-VA dealer in good time, to ensure timely delivery within 6 months of the submission of the claim. Find your local HE-VA dealer here.

Subsoiling Tine Adjusment

The Subsoiling tines on the Combi-Disc can be used to work down to 350mm (14”) or can be lifted out of work completely and the working depth can be altered on the move. The depth of the tines is controlled by the relative position of the packer roller at the back of the machine.

Disc Adjustment

Once the tines depth is set in relation to the packer roller then discs can be adjusted and set separately. The discs can work to a maximum of 12cm (5”) or can be taken out of work completely. Once again the adjustment is hydraulic and the discs can be adjusted and fine tuned whilst on the move.

DSD - Depth Synchronised Disc - Aggressiveness

When designing the Combi-Disc the aim of the HE-VA engineers was to produce a machine that could fulfil all the roles that a disc cultivator is asked to. It needed to be able to work shallow to create stale seedbeds at 2 - 5cm and at the same time be able to cut and incorporate crop residues when working deep in heavy soils.

The unique DSD system is the way that both aims were achieved. When the machine is being used for shallow cultivation (position 1) the disc is virtually perpendicular to the soil. As the operator adjusts the discs deeper using the tractor hydraulics (position 2) the disc angle automatically increases (see below).

( 1 ) When working shallow the DSD system ensures that the angle of the disc to the soil is perpendicular (vertical) which means that the discs push the soil horizontally (sideways) and the whole soil surface is moved. Another key benefit of the vertical disc is that it breaks the soil loose rather than “scooping” it out like a concave disc working at an angle, this means there is no smearing which would create a disc pan.

( 2 ) When being used as a deep disc cultivator or for residue mixing and incorporation a more aggressive disc angle is required. The DSD system automatically increases the aggressiveness of the disc angle relative to the soil surface.

The end result is that the discs pull themselves into the ground more which assists penetration meaning more soil is inverted and residue incorporated. All this happens automatically and hydraulically as the depth of the discs is being altered by the tractor driver.

A traditional concave disc or an aggressively angled disc will lift soil and cut out “grooves” but will not move all the soil surface. At the same time it will tend to smear and seal the worked soil creating a disc pan. - DSD

Shearbolt

Shearbolt leg protection comes as standard on the Combi Disc and the standard 25mm Combi-Disc leg is made from Hardox steel to minimise wear.

All genuine HE-VA Shearbolts are designed and tested to give ultimate protection to your HE-VA machine.

Hydraulic Reset - Auto

The Combi-Disc’s soil loosening legs can be fitted with on the move hydraulic reset. A pressure gauge allows the hydraulic system to be set according to the working depth and oil accumulators provide temporary expansion room for the hydraulic system when the legs trip. This means that the leg breaks back quickly and is able to reset immediately once it has passed the obstacle.

The sensitivity of the break back system is quickly and easily adjusted by the operator according to the working depth and type of soil. The whole system reduces the amount of lost time due to shearbolt breakages and makes the machine easy and convenient to use.

Leg and Points

The soil loosening legs on the Combi-Disc are set at 55cm centres and staggered in two rows at 400 - 420 (dependant on model) to allow soil and residue to flow between them and keep the draft requirement to a minimum.

The standard 25mm Combi-Disc leg is made from Hardox steel to minimise wear. The point itself is made from cast steel which is hardened to prevent wear without becoming brittle. A single bolt located behind the heel of the leg is used to hold the point in place, this makes it a matter of a few minutes work to change all the points on a Combi-Disc.

The Combi-Disc point has been developed by HE-VA through over 10 years experience of subsoiling and soil loosening in a huge variety of conditions all over the world. The experiences of customers each year has lead to continuous evolution of the point to provide the best wear characteristics and yet ensure it gets the job done.

The standard Combi-Disc point is 200mm wide but narrower 80mm and 120mm versions are available as well as a 350mm point. Whilst the 200mm point is suitable for most applications the soil type, working depth and desired end result varies so a simple change of point size will allow the Combi-Disc to suit most applications.

Stealth 15mm LD Leg & Point Option

The Stealth 15mm low disturbance leg and tungsten tipped low disturbance Stealth point are the product of many years development. Whilst many customers are moving towards reduced tillage systems they appreciate that drainage is key to crop development, allowing timely field operations and preventing the relentless progress of grass weeds such as blackgrass. The Stealth 15mm low disturbance leg and point that HE-VA has developed allows deep soil loosening whilst minimising surface disturbance and preventing mixing of the soil profile.

The thinner legs are made from stronger Hardox steel and can be interchanged with the 25mm standard subsoiler legs as necessary. However, it is the point that really makes the difference. The Stealth 15mm low disturbance point has a shallower wing angle and shorter tungsten tipped nose that opens the soil to create drainage without disturbing the whole soil profile.

Rear Rollers

Like many of the machines in the HE-VA range the Combi-Disc uses the proven pressed steel V profile ring. However, all the rings are mounted on a 150mm solid axle so that each section of the roller turns as one ensuring the machine can continue to work in very wet sticky conditions. Each ring section is castellated ensuring the roller turns in light soils. The aggressive rib and shoulder profile combines with around 150mm ring spacing to leave an excellent consolidated weatherproof finish. Trailed Combi-Discs are supplied as standard with a larger 700mm V-Profile ring packer.

Border Deflector

The border deflector comes standard on every Combi-Disc ensuring that a level finish can be achieved on any soil type.
