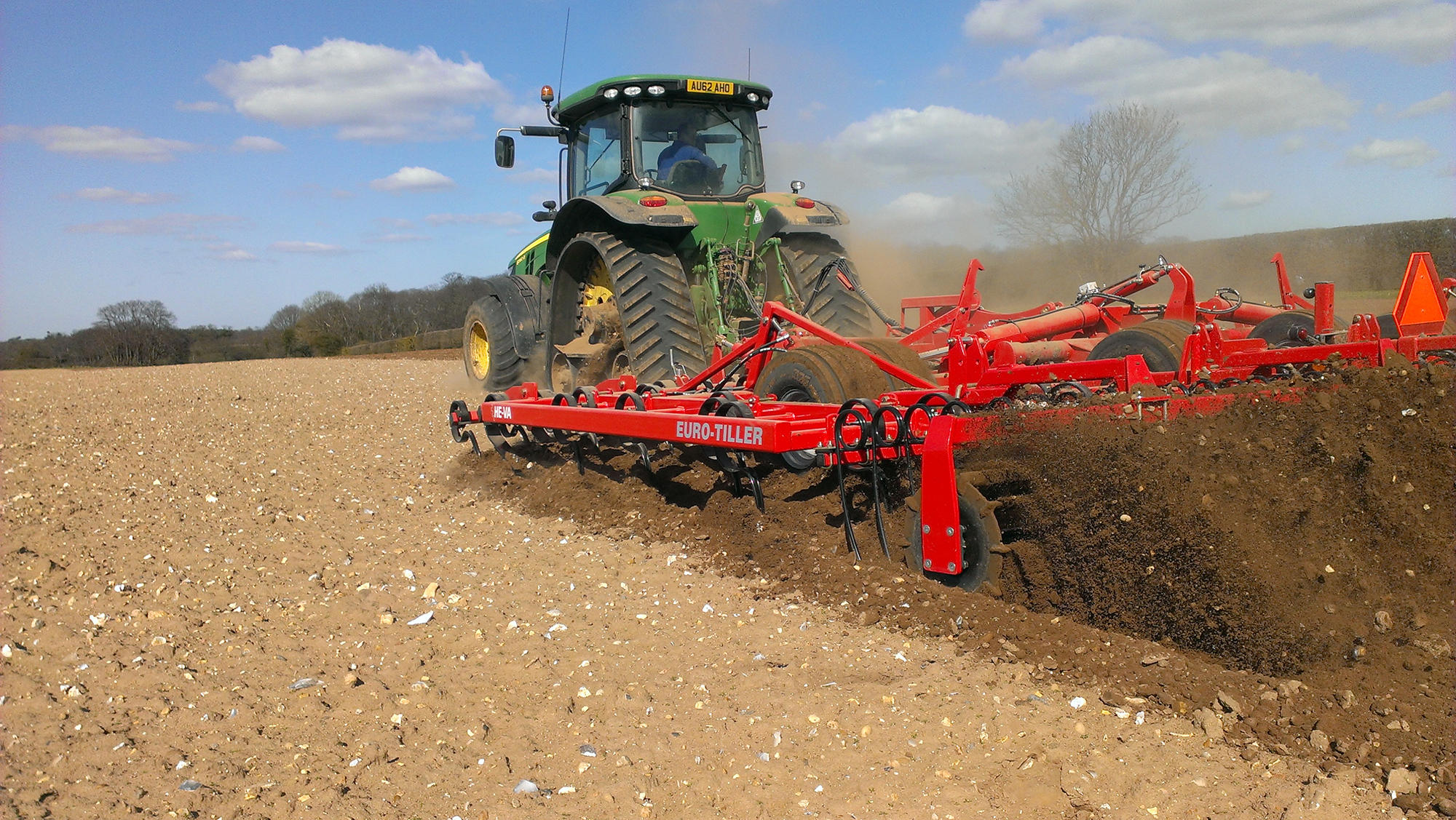

HE-VA’s Euro-Tiller is a heavy duty secondary tine cultivator designed for working down ploughing and/or stale seedbeds. It’s robust frame can be equipped with the necessary optional tools to obtain the perfect seedbed for most soil types.
Its heavy duty frame is designed to work behind low and high hp tractors and strong 10mm x 45mm harrow tines ensure optimal harrowing of all soil types. The standard harrow has a tine spacing of 8.5 cm and solid 7 row ladder type frame made from 60 x 60 x 5 cm sectional box section.
Standard Specification:
• 6m, 7m, 8m and 9m models
• 7 staggered rows of 10 x 45 mm tines
• Multiple, large tandem depth wheels
• Simple in cab depth adjustment
• Hydraulic folding with automatic transport lock
• Spare wheel
• Heavy duty ladder style frame
• LED lights
HE-VA’s Euro-Tiller comes in a range of sizes, upwards from 6m working width, requiring 120hp, to the largest model at 9m working width, requiring 200hp and all within 3m transport width.
FEATURES & BENEFITS
7 Rows of Tines
The strong 10 x 45 mm harrow tines ensure optimal harrowing of all soil types. The standard harrow has a tine spacing of 8.5 cm. Equipped with a front harrow, the average tine spacing is 6.4 cm.
Depth Control
Depth of the tines is controlled hydraulically and can be governed by an electric depth stop ensuring that the set depth is the same each time the Euro Tiller is lifted & lowered on the headland. An override in cab switch allows the operator to work more aggressively on certain areas like the headlands if required.
Eight large boogie wheels (300/65x12) with a master slave hydraulic system ensure a precise and uniform working depth in all conditions.
Transport
During transport the side sections are folded over into vertical position, the automatic locking system ensures safe and stable transport at all times.
Strong Frame
The Euro Tiller has a heavy duty ladder type frame, made from 60x60x5 cm sectional box section.
SPECIFICATION
The Euro Tiller boasts a large variety of configuration option so the machine can be tailored to suit individual farm requirements.
Strong Front Harrow
The strong front harrow mounted before the front Shattaboard breaks the crust, and wheel tracks, compressed soil is loosened so that the levelling bar performs a more precise levelling of the soil plus reducing energy consumption. When the strong front harrow is attached to the Euro-Tiller Euro-Tiller the average tine spacing is 6.4 cm.
The aggressiveness (tine row angle) on the strong front harrow is adjusted via manual turnbuckles.
Front Levelling Shattaboard
By mounting a Shattaboard in front of the Euro-Tiller the field is perfectly levelled and the major clods are broken. The Shattaboard tine is a strong 10 x 80 mm spring tine, standard mounted with 8 x 150 mm point. The Shattaboard comes standard with hydraulic adjustment of the working depth / aggressiveness, which can be adjusted during operation. This requires a double-acting oil outlet.
Rear Levelling Shattaboard
The Rear Levelling Shattaboard is mounted behind the harrow section ensuring an effective levelling of the harrow tine tracks and a light consolidation. The vibrating tines break the last clods efficiently. The Rear Levelling Shattaboard can be mounted together with the Following Harrow.
The Rear Levelling Shattaboard is connected to the front levelling bar and is hydraulically adjusted. The front and rear bars are independently adjustable by the connecting bar.
Flat Bar Roller
Flat Bar Roller ø400 mm mounted with the long finger harrow in front leaves a fine and light consolidated surface. With its construction of 8 x 40 mm flat steel, this type of roller ensures a perfect seedbed.
The Following Harrow is mounted on the roller support arms, the angle and working depth of the tines is adjustable in relation to the roller.
Following Harrow
The Following Harrow consists of a single row of strong 12mm coiled tines, these erase any tracks left by the tines.
Both the pressure and the working angles are easily adjustable on the Following Harrow to suit the individual soil conditions.
EURO-TILLER MODELS
Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.
A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.
The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.
Technical Information
| Model | Width | No of Tines | HP | Weight |
| 105860000 | 6m | 69 | 120+ | 3150kg |
66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).
Options & Accessories
| Model No. | Description |
| 105896600 | Strong front harrow in front of shattaboard |
| 105897600 | Shattaboard with wide wear points |
| 105895600 | Rear shattaboard |
| 105860900 | Following harrow |
| 105898906 | Flat bar roller and following harrow |
| 105895015 | Spring tine eradicator |
| 105895150 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short |
| 105895170 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long |
| 105895300 | Dolly with 11.5 / 80 x 15.3 wheels for towed press |
| 103409400 | HPV - Controller for rolls and tiller |
| 105895305 | Additional set hyd hoses on dolly |
Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.
A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.
The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.
Technical Information
| Model | Width | No of Tines | HP | Weight |
| 105870000 | 7m | 82 | 150+ | 3400kg |
66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).
Options & Accessories
| Model No. | Description |
| 105896700 | Strong front harrow in front of shattaboard |
| 105897700 | Shattaboard with wide wear points |
| 105895700 | Rear shattaboard |
| 105870900 | Following harrow |
| 105898907 | Flat bar roller and following harrow |
| 105895015 | Spring tine eradicator |
| 105895150 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short |
| 105895170 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long |
| 105895300 | Dolly with 11.5 / 80 x 15.3 wheels for towed press |
| 103409400 | HPV - Controller for rolls and tiller |
| 105895305 | Additional set hyd hoses on dolly |
Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.
A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.
The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.
Technical Information
| Model | Width | No of Tines | HP | Weight |
| 105878000 | 8m | 94 | 175+ | 3650kg |
66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).
Options & Accessories
| Model No. | Description |
| 105896780 | Strong front harrow in front of shattaboard |
| 105897800 | Shattaboard with wide wear points |
| 105895800 | Rear shattaboard |
| 105878900 | Following harrow |
| 105898908 | Flat bar roller and following harrow |
| 105895015 | Spring tine eradicator |
| 105895150 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short |
| 105895170 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long |
| 105895300 | Dolly with 11.5 / 80 x 15.3 wheels for towed press |
| 103409400 | HPV - Controller for rolls and tiller |
| 105895305 | Additional set hyd hoses on dolly |
Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.
A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.
The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.
Technical Information
| Model | Width | No of Tines | HP | Weight |
| 105890000 | 9m | 106 | 200+ | 3900kg |
66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).
Options & Accessories
| Model No. | Description |
| 105896900 | Strong front harrow in front of shattaboard |
| 105897900 | Shattaboard with wide wear points |
| 105895900 | Rear shattaboard |
| 105890900 | Following harrow |
| 105895015 | Spring tine eradicator |
| 105895150 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short |
| 105895170 | Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long |
| 105895300 | Dolly with 11.5 / 80 x 15.3 wheels for towed press |
| 103409400 | HPV - Controller for rolls and tiller |
| 105895305 | Additional set hyd hoses on dolly |
